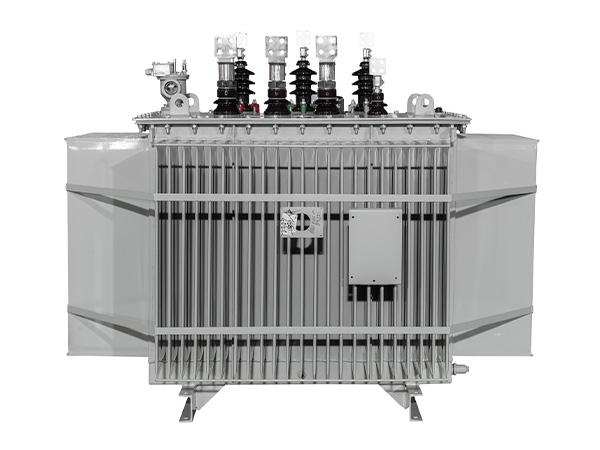

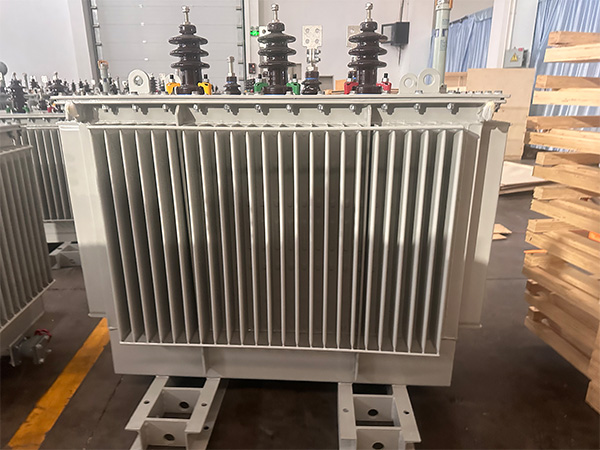

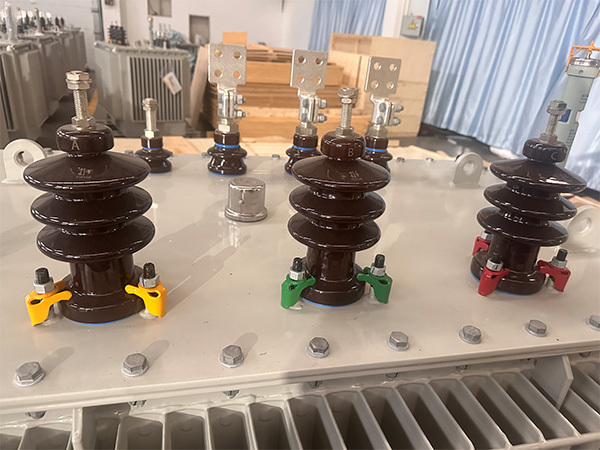

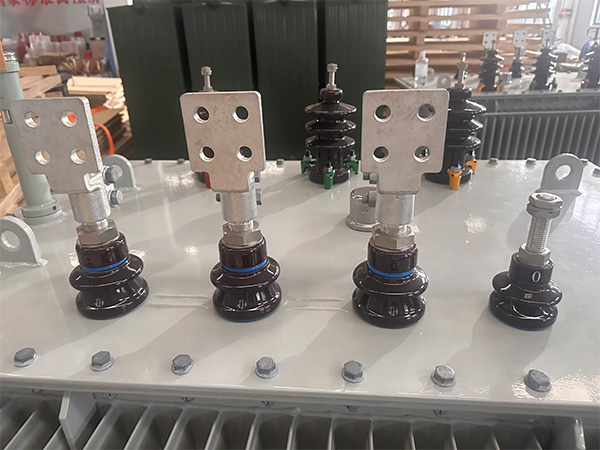

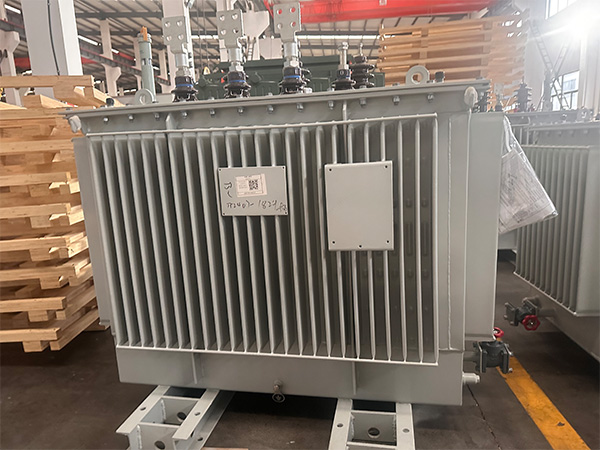

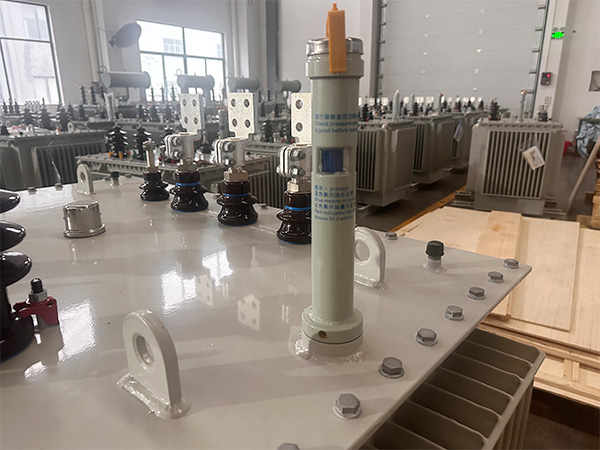

The 10kV three-phase oil-immersed distribution transformer is a critical component in power distribution networks and industrial power systems. Featuring a compact design with aesthetic appearance, it offers low noise operation and excellent overload capacity. Available in hermetically sealed or conservator tank types, this transformer is ideal for various applications including plants, mines, petrochemical facilities, and agricultural power systems. Its robust construction ensures reliable performance even in environments with oil contamination or chemical exposure. With high efficiency and durable design, it provides stable voltage transformation from 10kV to low-voltage levels, making it an essential solution for modern power distribution requirements.
Product Advantage
1.Precise Voltage Regulation & Step-Down Performance
Our 10kV oil-immersed transformer delivers exceptional voltage regulation (±2.5% tolerance), efficiently stepping down high voltage (10kV) to safe low voltage (400V) levels. With 98.5% efficiency rating (per IEC 60076), it minimizes energy waste while ensuring stable power for residential, commercial, and industrial applications.
2.Enhanced Electrical Isolation
The transformer provides complete galvanic isolation between primary and secondary windings, protecting end-user equipment from voltage surges (withstands up to 95kV impulse voltage).
3.Safety to electrical appliances
High voltage power supply and fluctuation in voltage are the major reasons for the occurrence of electrical shocks and electrical hazards. It can cause short circuits, damage to electrical appliances, damage to property and life, and fire. The distribution transformers help in supplying consistent and safe voltage for the functioning of electrical appliances. It minimizes the risk of electrical hazards and offers safety to both appliances and life.
4.Energy Loss Reduction Technology
Incorporates low-loss design (no-load losses <0.8%, load losses <1.2%) with optimized magnetic flux distribution. Reduces transmission waste by up to 40% compared to conventional models, verified by ISO 9001-certified testing.
>> Technical Parameters
| Type | Three Phase Oil-immersed Distribution Transformer |
| Model | S11~20 |
| Installation | Outdoor |
| Altitude | ≤1000m |
| Rated Power | 630KVA or others |
| Cooling Method | ONAN |
| Primary Voltage | 10KV |
| Secondary Voltage | 400V or others |
| Rated Frequence | 50/60HZ |
| Insulation oil | Mineral oil |
| Tapping Range | ±2×2.5%/±5% |
| Temperature rise℃) | 65 |
| Connection Group | Dyn11/Yyn0 |
| Total weight(kg) | 1700 |
>> Product Uses
1.Urban Power Distribution Networks
Widely adopted in city substations and residential complexes to step down 10kV to 400V for daily consumption. The oil-cooled design ensures silent operation (≤55dB) ideal for densely populated areas while meeting strict urban safety regulations.
2.Industrial Power Systems
Essential for manufacturing plants, mining operations and assembly lines requiring stable medium-voltage distribution. Its 150% overload capacity reliably supports heavy machinery startups and production peak loads.
3.Renewable Energy Integration
Commonly installed in solar/wind farms as grid-connection transformers. Special anti-corrosion treatment protects components in coastal/high-humidity environments, maintaining 98% efficiency despite renewable power fluctuations.
4.Rural Electrification Projects
Perfect for remote villages due to minimal maintenance requirements. Operates reliably in extreme conditions (-30°C~50°C) with automatic voltage regulation (±3%) for areas with unstable grid supply.
5.Critical Infrastructure Support
Deployed in hospitals, data centers and transportation hubs where power continuity is vital. The hermetically sealed tank prevents oil leakage, achieving IP55 protection for indoor/outdoor installations.
>> Product Operate Guide
Generic installation and use instructions for distribution transformer, containing the following sections:
1.Transportation
2. Deliverable check
3.Storage
4. Installation Enviornment Requirements
5.Electrical Installation
6.Common components
7.Common operation
8.Fuse installation
9.DC resistance
10. Pessure resistance
11. Transformer ration
12.Power-on opeartion
13.Power-off repair
14.General maintenance
15.Component maintenance
16.Component replacement
17.Transformer troubleshooting
18.Table of tightening torque
