>> Product Introduction

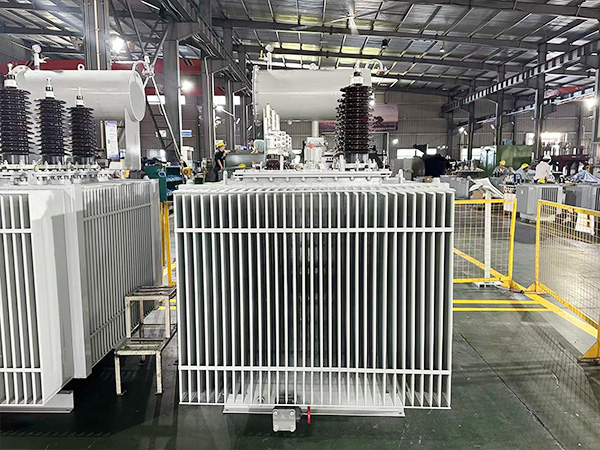

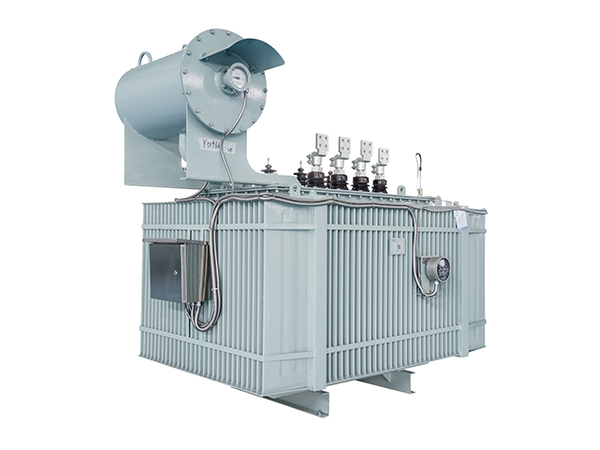

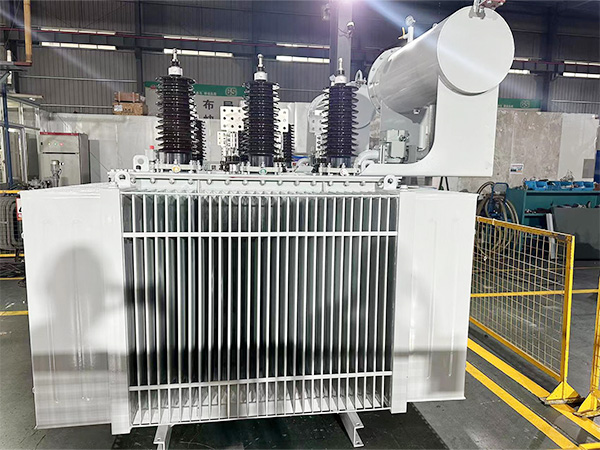

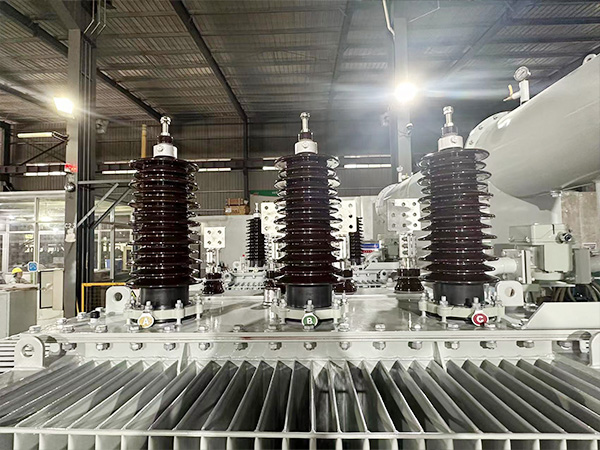

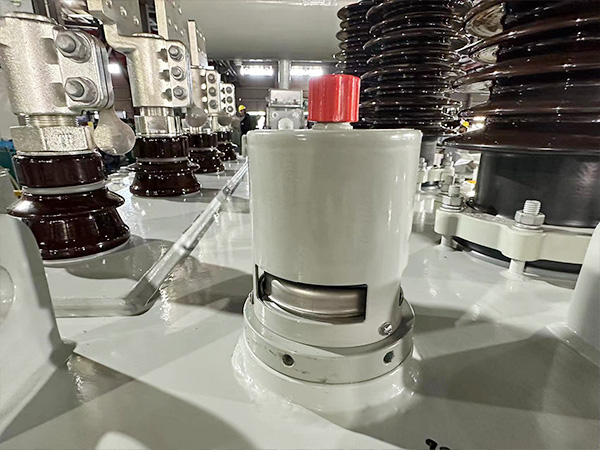

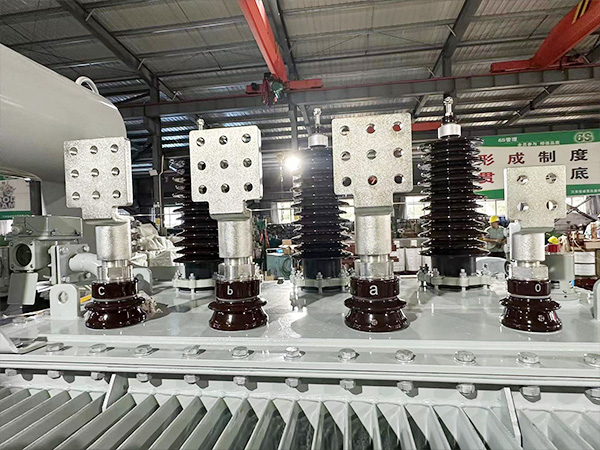

The 35kV three-phase oil-immersed distribution transformer is a high-efficiency power solution compliant with ANSI C57.12.00, IEC 60076, and GB standards. Featuring advanced C.R.G.O. silicon steel cores and oxygen-free copper windings, it delivers ultra-low losses (S11-M series achieves 30% reduction vs. S9-M). The sealed tank design with corrugated/expansion radiators eliminates oil oxidation, extending service life while reducing maintenance.
Ideal for utility and industrial applications, its mitered core structure ensures quiet operation (<65dB) and enhanced safety. The conservator-free construction minimizes footprint while preventing moisture ingress. With models ranging from S9-M to S11-M, it provides flexible options for 10kV-35kV distribution networks nationwide.
Product Advantage
1. High Efficiency: With an efficiency rating of over 98%, our transformer ensures optimal energy saving and reduced operational costs.
2. Robust Design: Constructed with high-quality materials, it guarantees long-term reliability and durability, with a lifespan exceeding 30 years.
3. Advanced Cooling System: Equipped with a self-cooling feature, the transformer maintains stable operation even under high load conditions.
4. Smart Monitoring:Integrated with advanced monitoring technology, it allows real-time tracking and data analysis for efficient maintenance and performance optimization.
5. Enhanced Safety: The transformer complies with stringent safety standards and features overcurrent protection and lightning arrester for enhanced safety measures.
6. Environmental Friendly: Designed with eco-friendly insulation materials, it minimizes environmental impact and helps in achieving sustainable energy goals.
>> Technical Parameters
| Type | Three Phase Oil-immersed Distribution Transformer |
| Model | S11~20 |
| Installation | Outdoor |
| Altitude | ≤1000m |
| Rated Power | 2500KVA or others |
| Cooling Method | ONAN/KNAN |
| Primary Voltage | 35KV |
| Secondary Voltage | 400V or others |
| Rated Frequence | 50HZ |
| Insulation oil | Mineral oil |
| Tapping Range | +2×2.5% |
| Temperature rise C | 65 |
| Connection Group | Dyn11 |
>> Product Uses
1. Industrial Sector: Used in factories and manufacturing plants to efficiently distribute power to machinery and equipment, ensuring seamless operation.
2. Commercial Buildings: Ideal for powering shopping malls, office complexes, and commercial centers, providing stable electricity supply for lighting, HVAC systems, and elevators.
3. Residential Areas: Deployed in residential neighborhoods for reliable distribution of electricity to homes, apartments, and community facilities.
4. Renewable Energy Projects: Integrated into wind farms and solar power plants to step up voltage for grid connection and ensure efficient energy transmission.
5. Infrastructure Development: Supports the electrical grid in urban development projects, including hospitals, schools, and public buildings, ensuring uninterrupted power supply.
>> Product Operate Guide
Generic installation and use instructions for distribution transformer, containing the following sections:
1.Transportation
2. Deliverable check
3.Storage
4. Installation Enviornment Requirements
5.Electrical Installation
6.Common components
7.Common operation
8.Fuse installation
9.DC resistance
10. Pessure resistance
11. Transformer ration
12.Power-on opeartion
13.Power-off repair
14.General maintenance
15.Component maintenance
16.Component replacement
17.Transformer troubleshooting
18.Table of tightening torque
